Laser Line Profiler (Profilometer)
Portable, wireless, and smart laser triangulation system for fast and precise measurements in various industries
The product

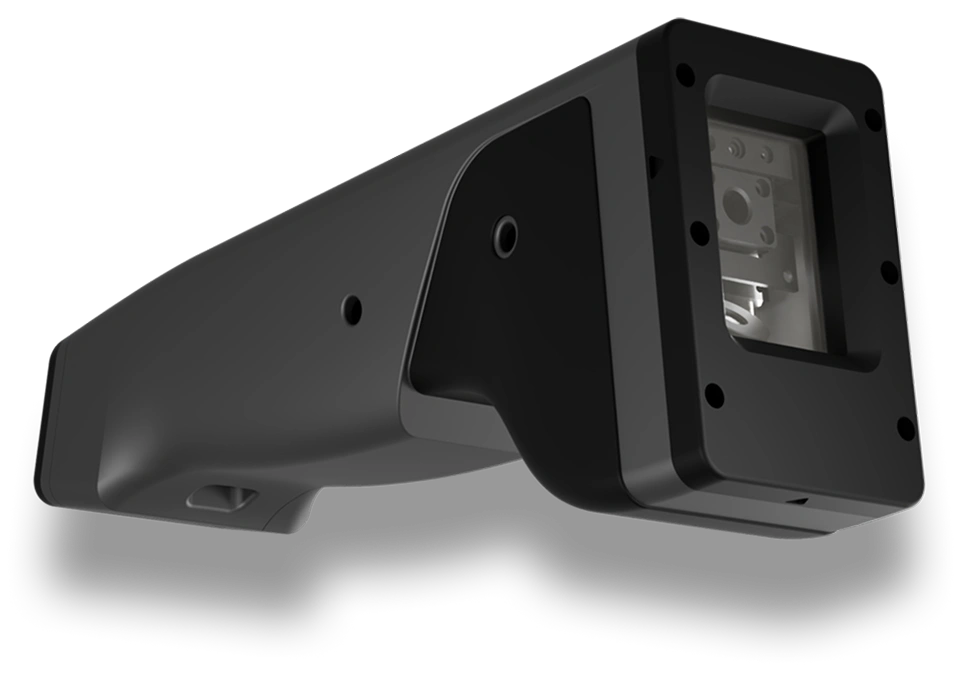

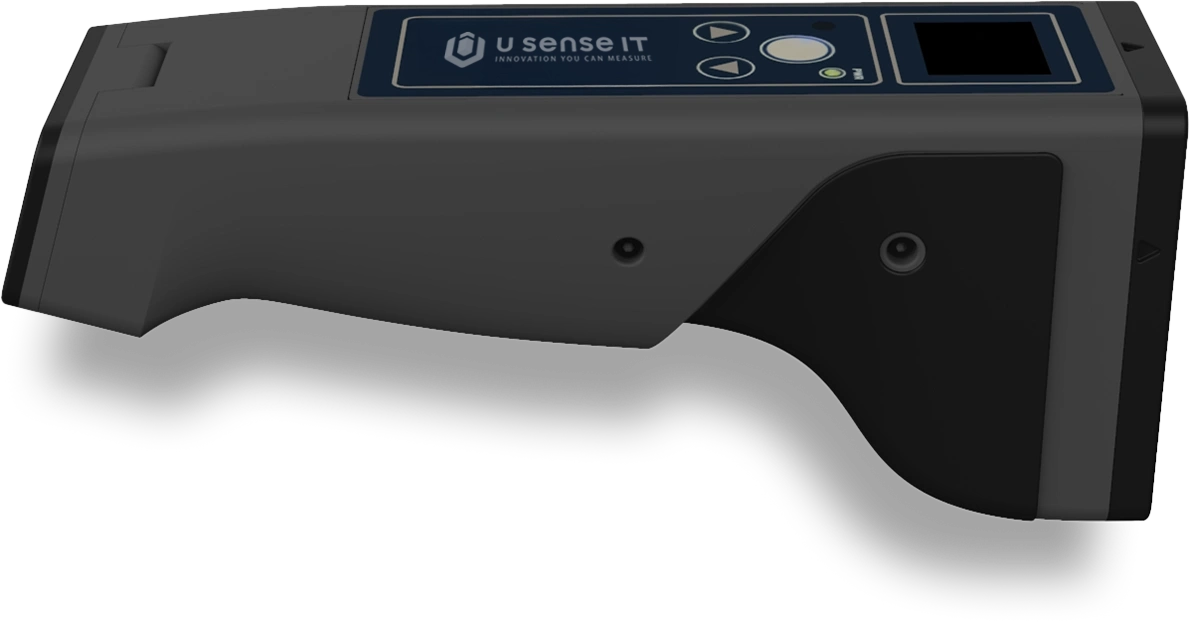

Optical measurement of geometric profiles
G3F laser triangulation devices are miniaturized, fast, portable, wireless, ergonomic, versatile, and configurable IIoT devices for various industrial applications. Measurement uncertainty is managed using patented Artificial Intelligence algorithms, and image quality is optimized via an integrated colour sensor.
Technical specifications
Micrometric precision for advanced optical measurements
Specification
Value
Laser (class 2M – EN 60825-1)
405 nm
X measuring range (lateral)
17 mm (@Z=0 mm) ……. 22 mm (@ Z=12 mm)
Z measuring range (axial)
0 ….. 12 mm
X resolution
7 𝜇m (@Z=0 mm) ……. 9 𝜇m (@ Z=12 mm)
Z resolution
9 𝜇m
Display
1" integrated display
Size – envelope (ergonomic shape)
48 x 75 x 165 mm
Weight
350 g
Models
GAP&FLUSH
Profile
GAP&FLUSH

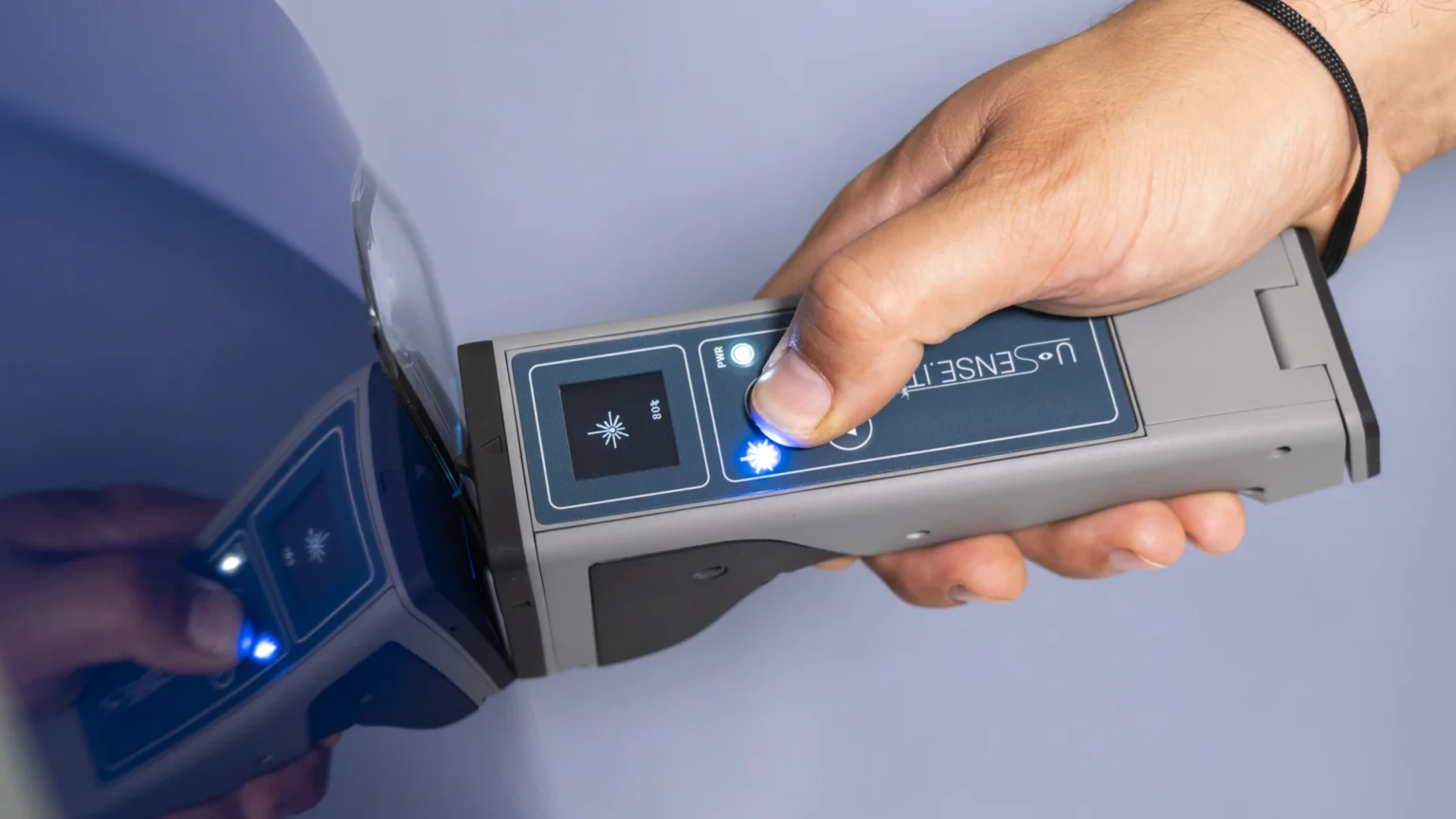

It quickly and accurately measures the distance (gap) and misalignment (flush) between adjacent surfaces. The on-board embedded Artificial Intelligence allows it to measure any surface (metal, plastic, glass and more) regardless of colour, surface finish, or material transparency, thus reducing uncertainty and increasing result reliability. Measured values are displayed directly on the device for immediate operator feedback and sent via Wi-Fi to the network infrastructure and can be viewed on a computer connected with the G3F-Viewer software.

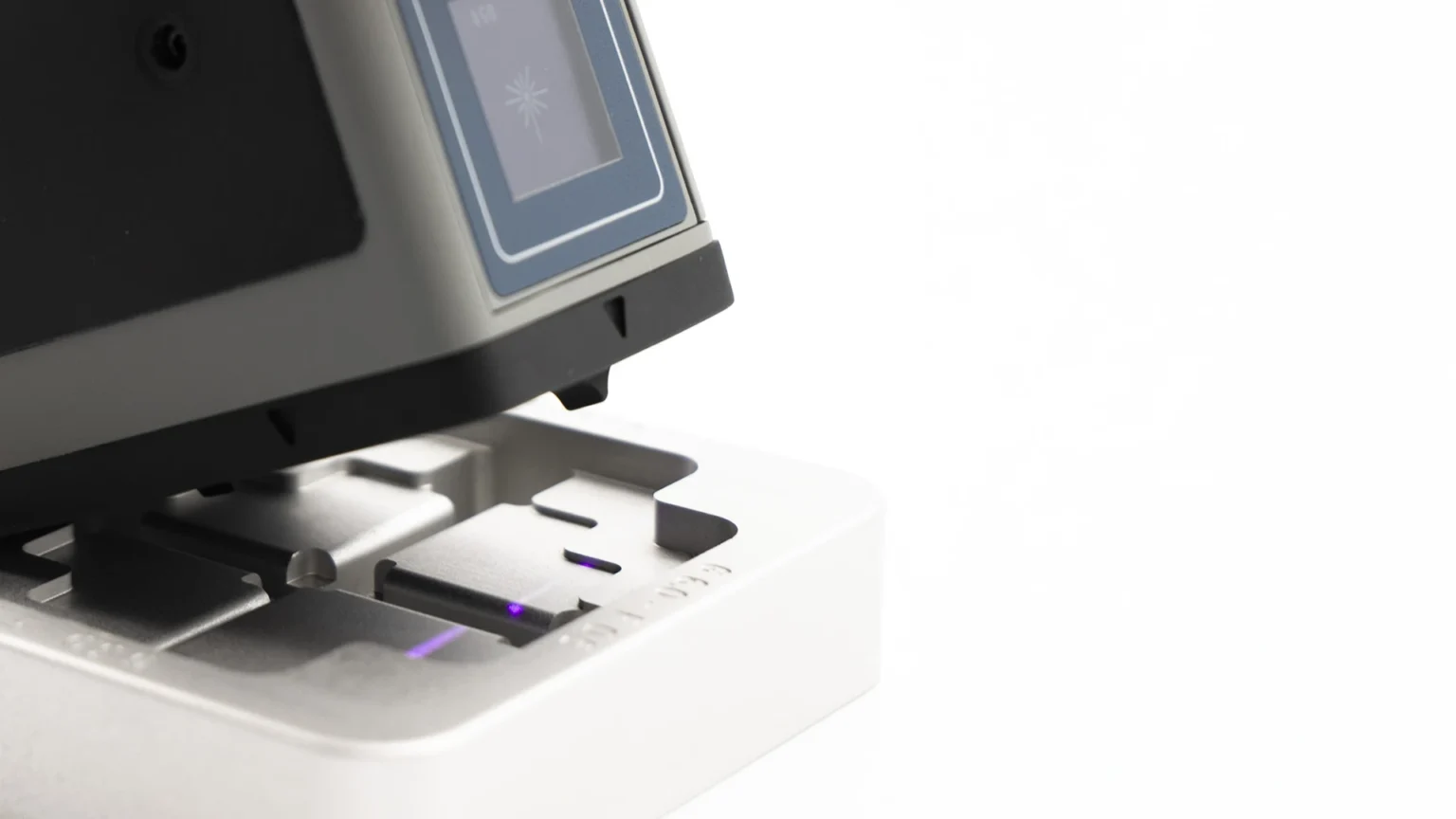

Industrial applications
Where to Use Gap&Flush
The G3F-GAP&FLUSH can be used in a wide range of applications. It is ideal to verify the correct alignment of surfaces in the automotive industry, the alignment of aesthetic components in household appliances as well as of panels in construction industry... and much more.
The System
G3F-VIEWER — Viewer Software

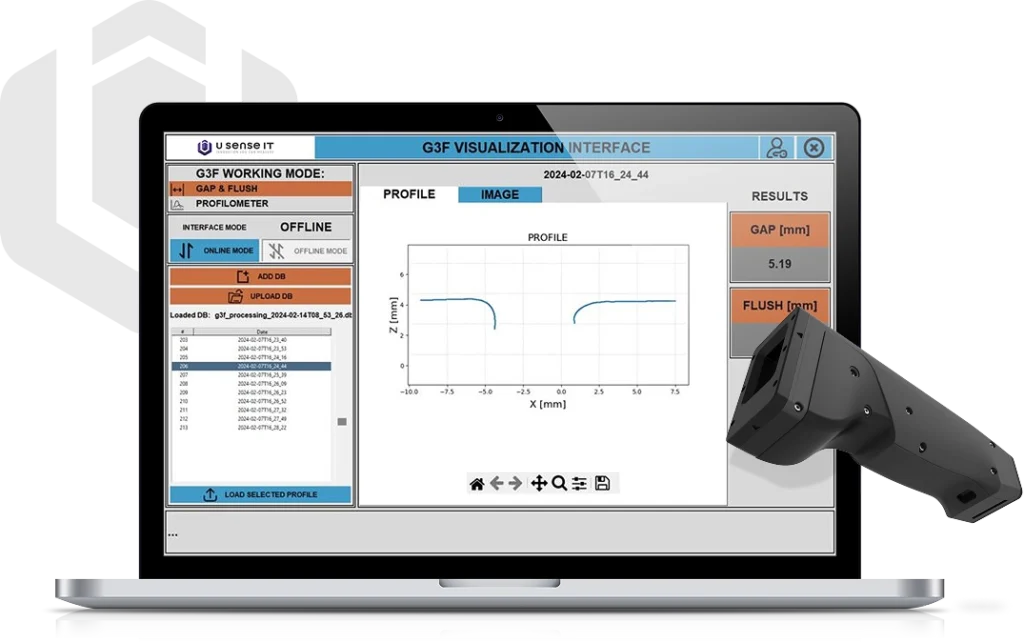

The G3F-Viewer software is the Microsoft Windows software interface for the G3F device, available both in the Profilometer and Gap&Flush versions. It allows viewing the results of measurement operations performed with the instrument and analysing the data collected. G3F-Viewer operates both ONLINE (with Wi-Fi connection) and OFFLINE (without Wi-Fi connection).
The accessories

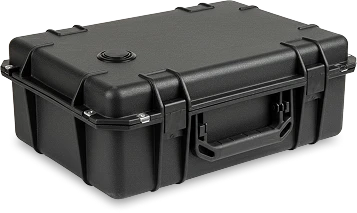

Airtight transport case

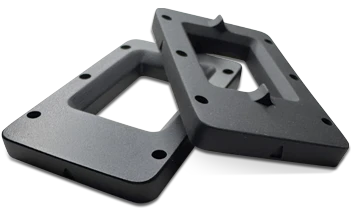

Alignment jigs

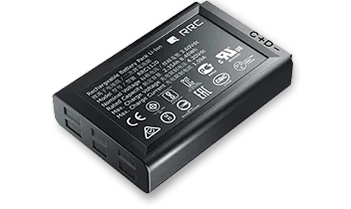

Removable battery

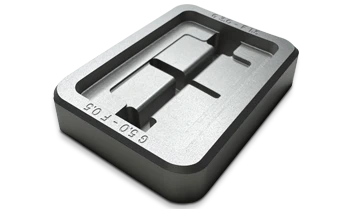

Calibration artifact
Ask for info
Contact us about G3F
Our team is ready to understand your needs and develop the most suitable solution with G3F. Please fill out the form and we will be in touch soon.
